Body-Solid GSFR100 All-in-One Functional Trainer/Smith

Body-Solid GSFR100 All in One Functional Trainer

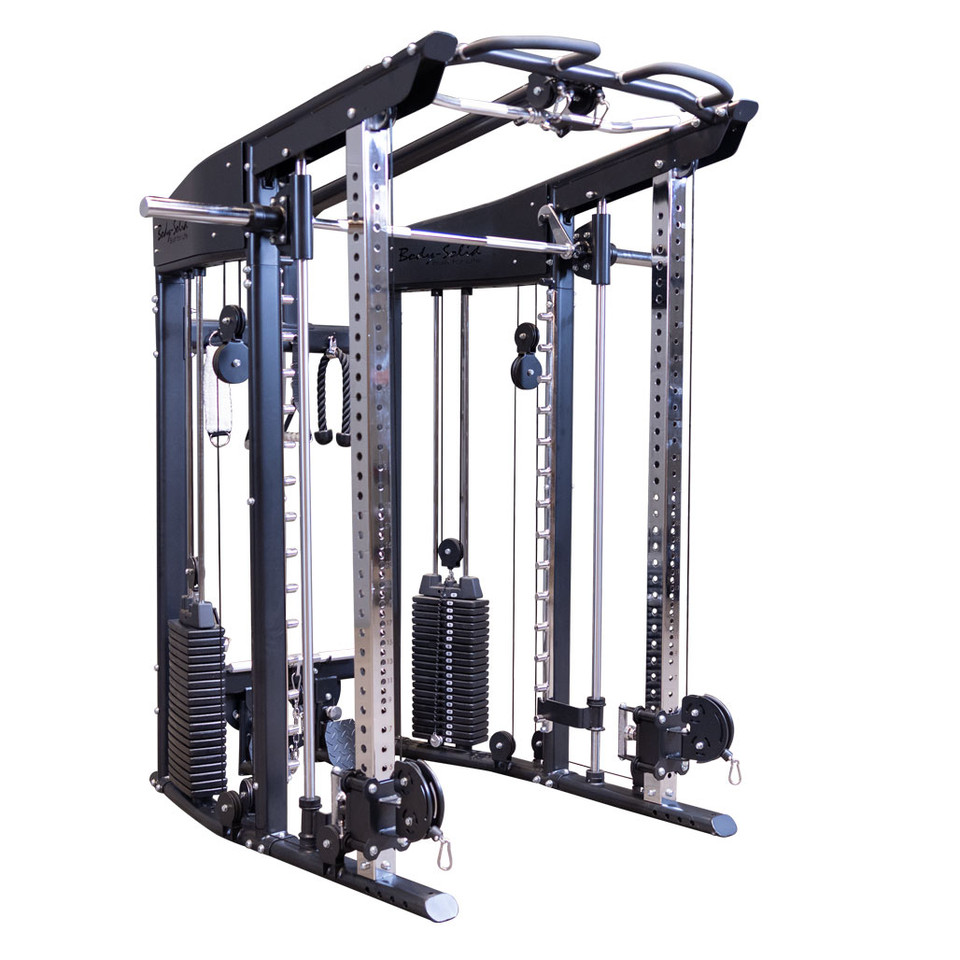

The Body-Solid GSFR100 is an all-in-one functional trainer that merges three stations—a linear-bearing Smith machine, a dual-stack functional trainer, and a lat/row tower—into one 68" x 77.5" footprint. It suits solo lifters and light-commercial spaces that need full-body strength training without three separate machines.

Three Machines, One Footprint

Three stations share a single frame, and that is the entire argument for this machine. You are not buying a compromise unit that does three things poorly. Each station carries specs that would justify a standalone purchase.

The Smith bar rides on sealed linear bearings rather than bushings, which is why the movement stays consistent rep after rep instead of developing the sticky spots cheaper guided bars pick up over a year. Dual 210 lb. weight stacks feed both the functional pulleys and the high/low pulley system.

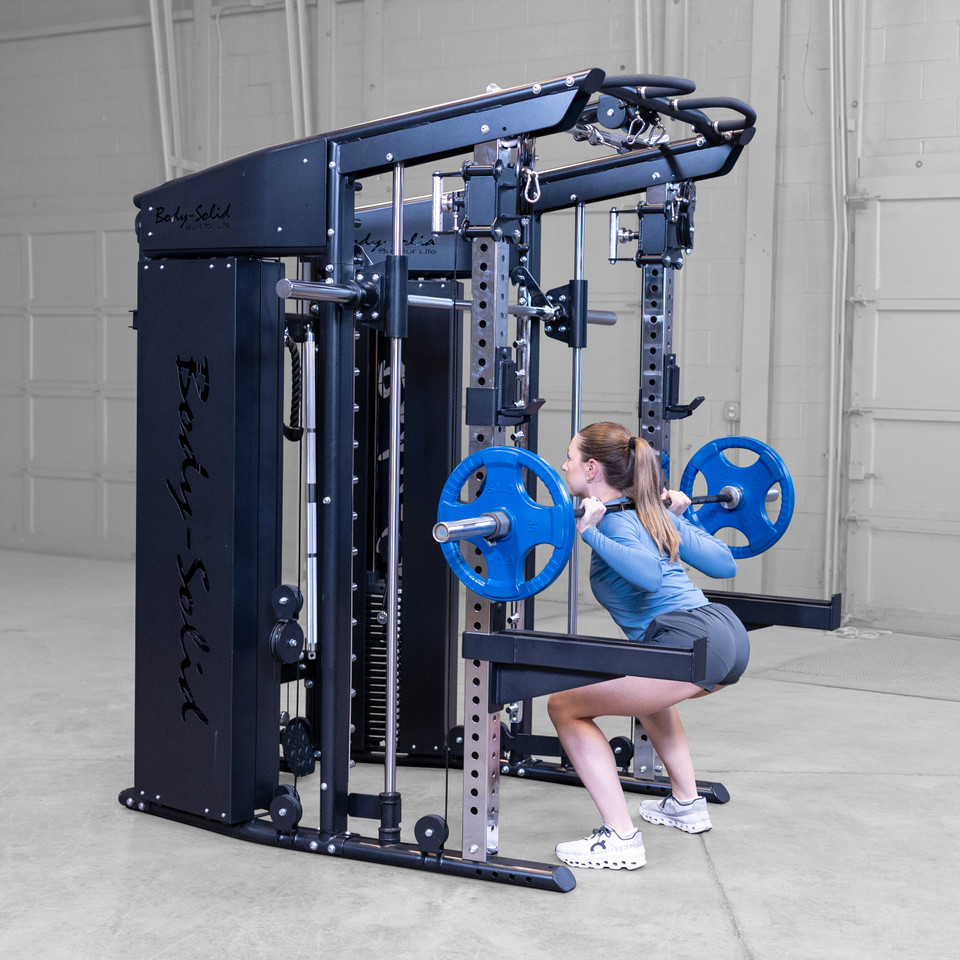

Is a functional trainer with a Smith machine worth it? For a household buying one machine, usually yes. The Smith covers loaded compound lifts safely when nobody is around to spot you, and the cables cover everything a barbell cannot—rotation, single-arm work, and constant-tension isolation.

Why the 2:1 Ratio Matters

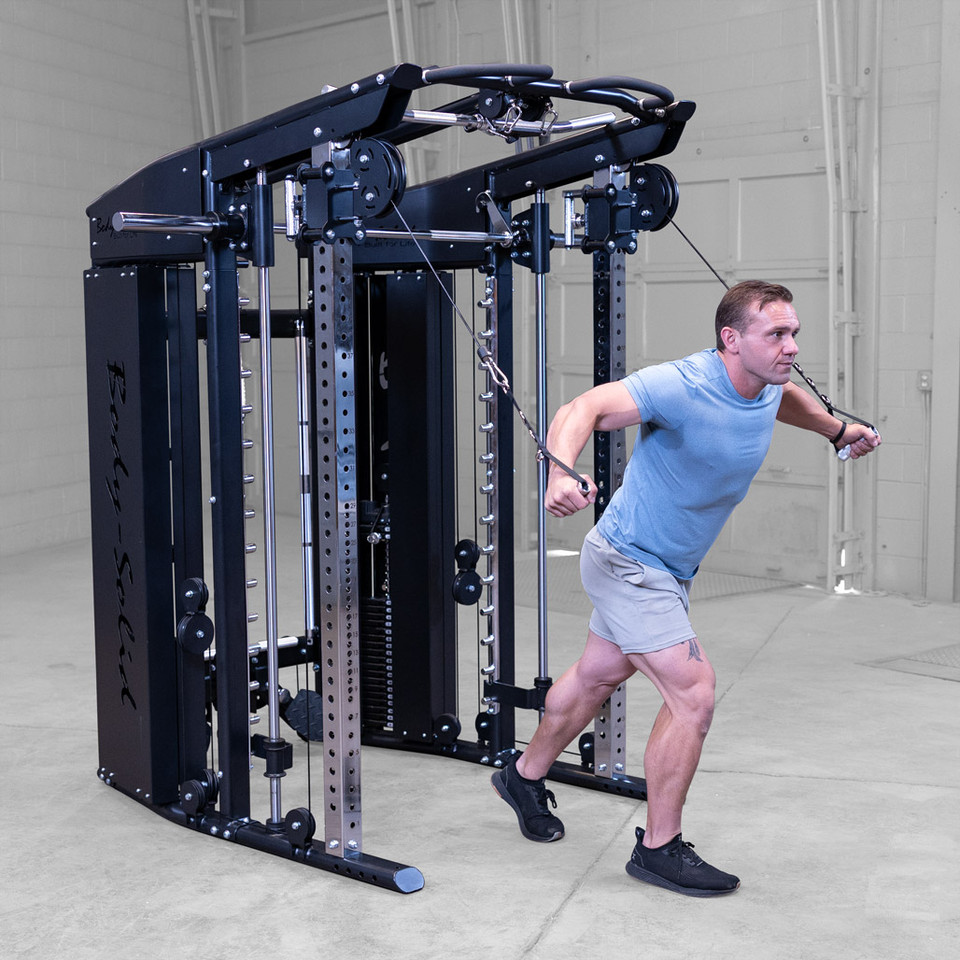

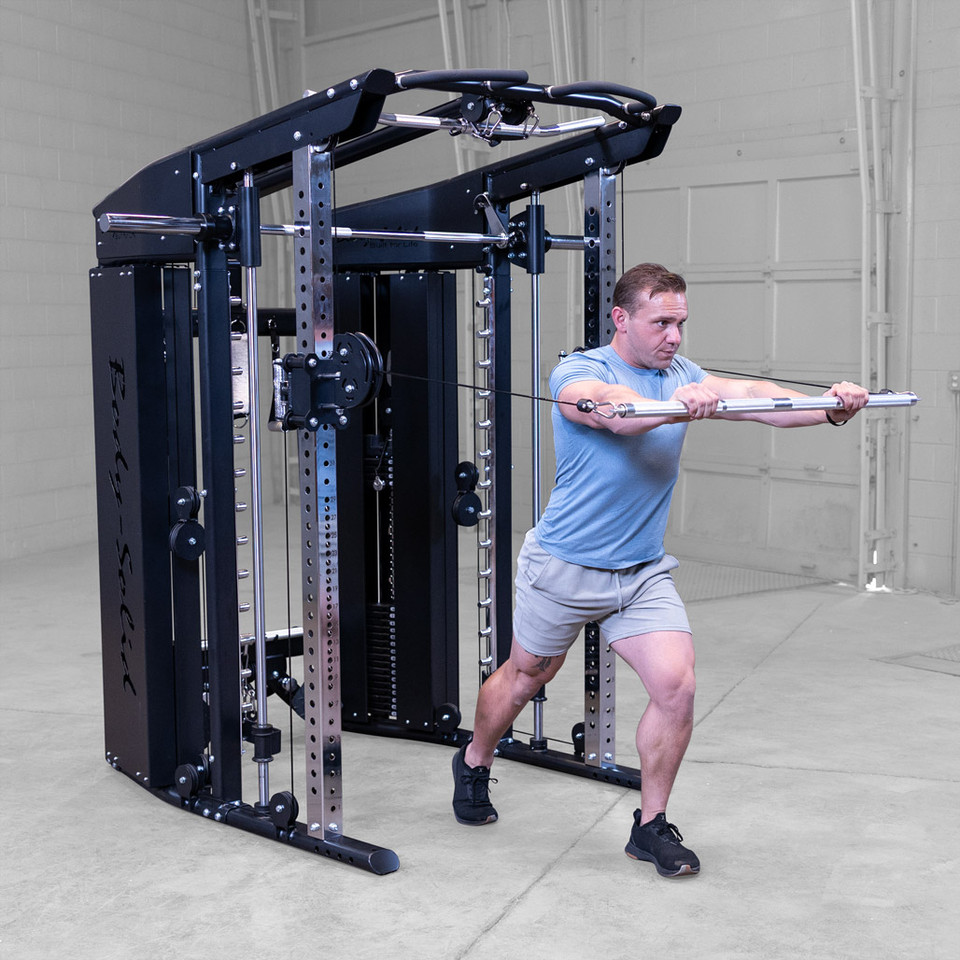

The 2:1 ratio doubles your cable travel, which is what makes sports-specific movement patterns possible on this machine. Long cable pulls need long cable travel. Wood chops, sprinter pulls, and full-arc flies run out of room on short-travel systems.

Here is the honest trade-off nobody puts on a spec sheet: on any 2:1 setup, the resistance you feel at the handle is proportionally lighter than the number on the stack. That is not a flaw. It buys you finer weight increments and a far better range of motion, and the quad-roller adjustment carriage on the chrome-plated upright keeps the travel smooth across all 43 positions.

Will It Fit Your Space?

Measure before you order, because 946 lbs. and 86 inches of height are not numbers you negotiate with after delivery.

The GSFR100 measures 68"L x 77.5"W x 86"H and weighs 946 lbs. Two figures deserve your attention before anything else:

• Ceiling height. The frame stands 86 inches—just over 7'2". A standard 8-foot ceiling leaves roughly 10 inches above the integrated pull-up bar. That clears the machine comfortably, but taller lifters should check their own head clearance at the top of a pull-up before committing.
• Floor and delivery path. At 946 lbs. This moves by freight, not parcel. Measure doorways, stair turns, and landing clearance along the full delivery route. A ground-floor slab or a reinforced basement floor handles the load without concern.

How much space do I need for a functional trainer? Take the footprint and add working room on every active side—roughly three feet behind the Smith bar for the bar path and enough clearance at each pulley side—roughly your arms fully. The stated footprint is the frame, not the space you train in.

What Ships With the GSFR100

Every unit arrives with the accessories most trainers make you buy separately. That matters more than it sounds, because a cable machine without handles is furniture.

Standard with every GSFR100:

• Integrated pull-up bar
• Aluminum lat bar
• Aluminum low row bar
• Two aluminum cable handles
• Ankle cuff
• Triceps rope

The functional trainer section uses 180-degree swiveling pulleys with one-handed adjustment across 43 positions on a chrome-plated upright. Isolateral work runs through the dual high- and low-pulley system, which includes combination plates for single-attachment accessories. At the low pulley station, adjustable foot braces steady you through heavy rows and pivot out of the way when you are done.

One honest gap: no bench is included. Flat and incline pressing on the Smith station needs one, so plan for a weight bench in the same order.

Build It Into a Half Rack

Add optional J-Cups (SPRJC) and Spotter Arms (SPRSA), and the GSFR100 converts into a freeweight half-rack rated to 1,000 lbs. That single upgrade path is why this unit outlasts most all-in-one purchases — the machine grows as your training does.

Optional full-length shrouds (GSFR100SH) add laser-cut logos and cover the stacks for a cleaner look and improved safety.

The GSFR100 also accepts a wide range of Body-Solid rack attachments—J-cups, safety bars, dip stations, jammer arms, hip thruster platforms, monolift

attachments, and more. Compatible optional attachments:

• GPRDH Dip Handles
• GPRTBR T-Bar Row
• GPRUL U-Link
• SPRBP Band Pegs
• SPRBSA Belt Squat Attachment
• SPRDIP Dip Handles
• SPRHT Hip Thrust Attachment
• SPRJAM Jammer Arms
• SPRJC J-Cups
• SPRLFT Monolift Attachment
• SPRLHD Leg Hold Down
• SPRSA Spotter Arms
• SPRUL U-Link

Key Features

✅ Smith, functional trainer & lat/row in one
✅ Linear bearing Smith bar, 600 lb. capacity
✅ Dual 210 lb. functional trainer stacks
✅ Quad roller carriage on chrome guide post
✅ 43 one-handed pulley height positions
✅ 180-degree swiveling pulleys
✅ Dual high and low pulley system
✅ 17 Smith lockouts with safety spotters
✅ Pivoting foot braces for heavy rows
✅ Six accessories included as standard
✅ Converts to 1,000 lb. half rack (SPRJC + SPRSA)
✅ Optional GSFR100SH full-length shrouds

Full Specifications

Every published figure for this unit, unedited.

The listed coverage is a in-home lifetime warranty on everything, with Body-Solid's light commercial warranty applying to commercial installations. Both warranty documents are linked in the specification panel above the description.

Who This Machine Suits

Buy the GSFR100 if one machine has to carry your entire strength program. That is the decision that wins.

It fits best for

• Solo lifters who press and squat heavy with nobody to spot them
• Households sharing one machine, where the 43 pulley positions mean no arguing over setup
• Small studios and light-commercial rooms covering full-body work in a single footprint
• Long-term buyers who want a half-rack upgrade path instead of a replacement purchase

Skip it if you already own a rack and a cable tower—you would pay twice for capabilities you have. Skip it also if your ceiling sits below 86 inches of clear height.

At $4,500, weigh it against what it replaces: a Smith machine, a dual-stack functional trainer, and a lat/row station bought separately, plus the floor space three frames would eat. Hamilton Home Fitness is an authorized Body-Solid dealer, so the manufacturer warranty arrives intact and genuine parts stay available.

Ready to order? Add the GSFR100 to your cart, or compare it against other all-in-one home gym machines before you commit.

Frequently Asked Questions

Does the GSFR100 need a spotter?

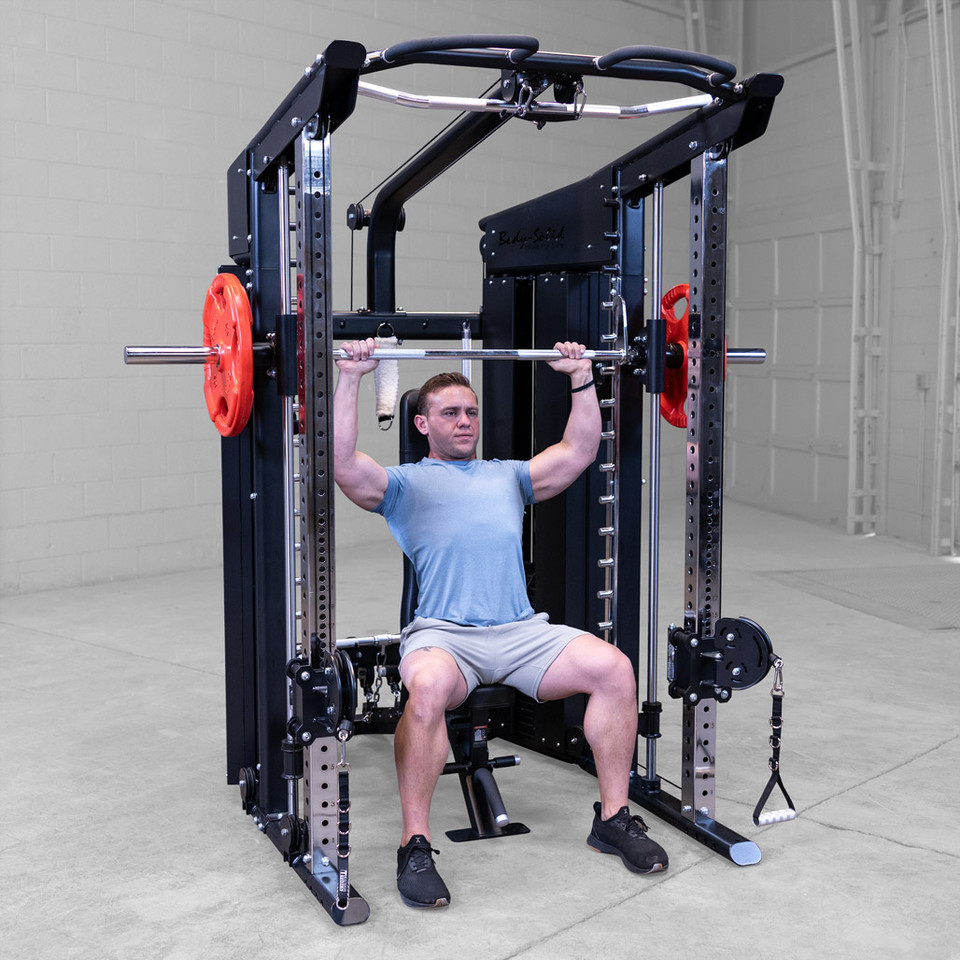

No. The Smith station has 17 lockout positions and integrated safety spotters, which is exactly why solo lifters choose guided bars for heavy pressing and squatting. You can bail a failed rep by rotating the bar into the nearest lockout.

Can one machine really replace a full gym?

For strength work, largely yes. Pushing, pulling, squatting, hinging, rowing, and isolation all run on this frame. What it will not give you is conditioning—plan cardio separately.

How long does assembly take?

Body-Solid ships this as a multi-crate freight unit at 946 lbs. total. Plan for two people and a full day, and unpack near the final position rather than moving assembled sections.

Is free shipping included?

Yes. Body-Solid equipment ships free through Hamilton Home Fitness, alongside STEPR, Spirit Fitness, TAG Fitness, and Vortex. We ship to all 50 states from our Tennessee base.

What maintenance does it need?

Wipe the chrome guidepost and Smith rails, keep the pulleys clear of dust, and inspect cables periodically for fraying. Cables and upholstery are the wear items on any stack machine — the frame is not.

Can I add a belt squat or hip thrust station later?

Yes. The SPRBSA Belt Squat Attachment and SPRHT Hip Thrust Attachment both bolt to this frame, along with jammer arms, dip handles, band pegs, and a monolift. Attachments are sold separately.

Order the GSFR100 today.

Three stations, one frame, one purchase—and a half-rack upgrade waiting when you outgrow them.

Add the Body-Solid GSFR100 to your cart now, or reach out first and we will size it to your room before anything ships. As an authorized dealer for over 40 brands, Hamilton Home Fitness ships Body-Solid free to all 50 states with the full manufacturer warranty behind it. Browse the complete Body-Solid range if you want to build the rest of the room around it.
